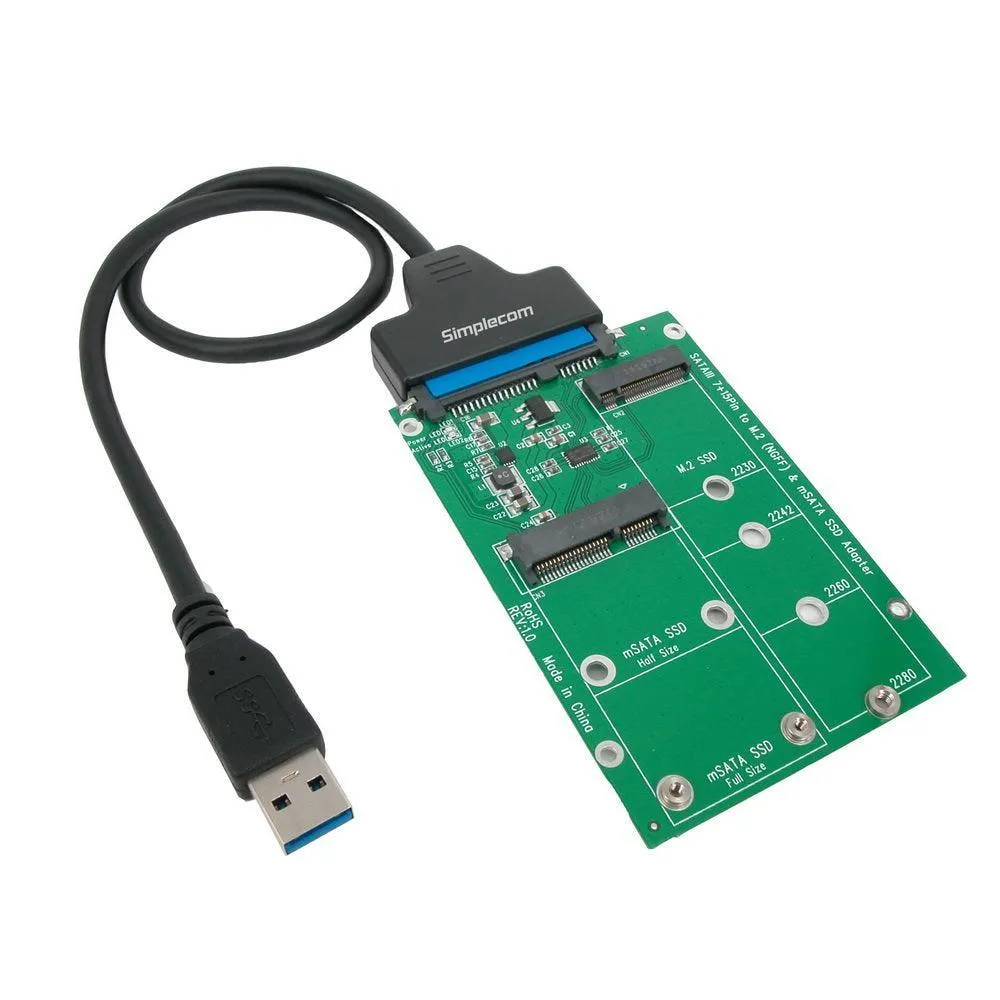

Simplecom SA221 is a 2 in 1 Combo Adapter for both M.2 and mSATA SSD to SATA and USB 3.0 interface. Use this adapter to easily access 6 different size M.2 or mSATA SSDs via standard SATA or USB 3.0 port. It’s an ideal solution for data backup and migration.

Specifications

• mSATA M.2 SSD 2 in 1 Combo Adapter
• Detachable USB 3.0 cable, with SATA and USB 3.0 dual interface
• LED indicates power and activity status
• Support SATA Revision 3.2
• PCI Express M.2 Spec. Revision 0.7, Version 1.0
• PCI Express Mini Card Electromechanical Spec. 1.2
• B Key M.2 interface, support B Key or B M Key M.2 SSD
• Thermal shutdown protection
• Short circuit protection
• In-rush current suppression
• PWM synchronous buck converter Power IC
• Support following form factor M.2(NGFF) SSD:
  • Type 2230-D2-B-M: 30mm(L) x 22mm(W)
  • Type 2242-D2-B-M: 42mm(L) x 22mm(W)
  • Type 2260-D2-B-M: 60mm(L) x 22mm(W)
  • Type 2280-D2-B-M: 80mm(L) x 22mm(W)
• Support following form factor mSATA SSD:
  • Half size mSATA : 26.8mm(L) x 30mm(W)
  • Full size mSATA : 50.95mm(L) x 30mm(W)

Note:

• If both M.2 & mSATA SSD inserted at the same time the M.2 SSD will take priority. The mSATA SSD will be disabled until the M.2 SSD is removed.
• The M.2 interface is B Key, M Key only or NVMeM.2 SSD are not supported.

Package Contents

• 1x mSATA M.2 SSD to SATA 2 in 1 Combo Adapter
• 1x USB 3.0 Cable
